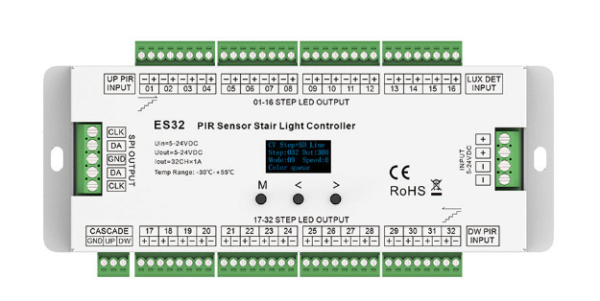

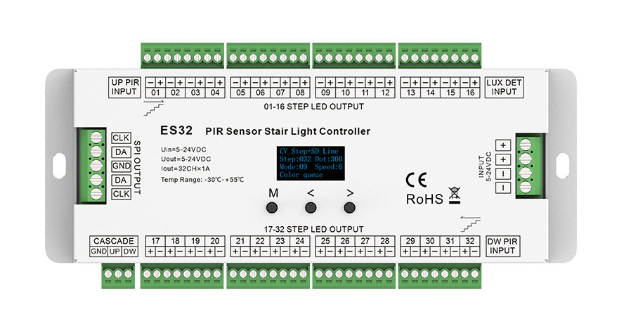

PIR Sensor Stair Light Controller
● Multifunctional PIR sensor stair light controller features daylight sensor.
● 32 channels constant voltage output drive low voltage LED strip, Max. 1A current per channel.
● 2 groups same SPI(TTL) signal output, drive 28 kinds IC digital RGB LED strip,
IC type and R/G/B order can be set.
Compatible ICs: TM1804, TM1809, TM1812, UCS1903, UCS1909, UCS1912,
UCS2903, UCS2909, UCS2912, WS2811, WS2812, TM1829, TM1914A,
GW6205, GS8206,GS8208,LPD6803, LPD1101, D705, UCS6909, UCS6912,
LPD8803, LPD8806, WS2801, WS2803, P9813, SK9822, SM16703P.
● Easy operation with OLED display and 3 buttons.
● four work light modes selectable.
● Two stair light controllers can cascade.
● Built-in multiple color mode, speed and brightness 1-8 grade adjustable.
● Push switch can be used as induction signal input.
● With fast self-testing function / Over-heat / Short circuit protection.
● Any damaged LED channel in 32 channels can be set disable.
● Can match with IR reflection induction probe (Standard) or whe
| Basic Parameters | |
|---|---|
| Input voltage | 5-24VDC |
| Output voltage | 32 x (5-24)VDC |
| Output current | 32CH,1A/CH |
| Output power | 32 x (5-24)W |
| Output type | Constant voltage + SPI(TTL) |
| Sensitive field | ⩽3m |
| Sensitivity angle | 30°(±10°) |
| Safety and EMC | |
|---|---|
| EMC standard (EMC) | ETSI EN 301 489-1 V2.2.3 ETSI EN 301 489-17 V3.2.4 |
| Safety standard(LVD) | EN 62368-1:2020+A11:2020 |
| Certication | CE,EMC,LVD |
| Operation temperature | a: -30 O C ~ +55O C |
| Gross weight | 0.65kg |
