DOTFREE IP67

Categories: DOT-FREE LED STRIPS

Get the brightest and most uniform dot-free lighting effect with this premium LED strip light.
Boasts the highest chip quantity per meter available on the market, while remaining extremely flexible, durable, and reliable.
Choose from custom, 5m, or 10m lengths for easy installation.
With high lumen output and IP67 protection, this LED strip is built to last.
Enjoy peace of mind with a 5-year warranty.

Basic Parameters

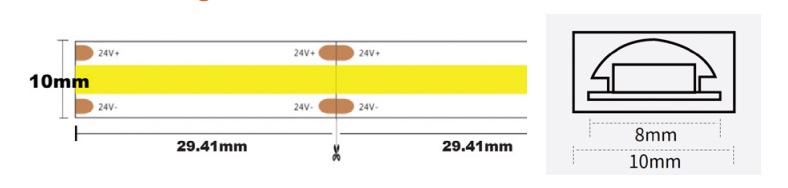

Size	IP67: 10mm x 4.8mm x 10000mm or custom
Input Voltage	24VDC
Input Current	0.42A/1m and 1.8A/5m
Max Power	11.2W
Lifetime	L90 >36,000 hours
Leds/m
Colour / CCT	2700K, 3000K, 4000K, 6500K, R, G, B
Bin Step (SDCM)	1 bin 2-step MacAdam ellipse
IP Rating	IP67
CRI	>90
Energy Efficiency Class	>A+
Warranty	5 years
Cutting Increment	29.41mm
Control	Phase cut (leading & trailing)/0- 10V/1-10V/DMX/DALI
Beam Angle	60°, 90°, 170° Beam

Colour/CCT	Typical Power	Cutting increment	LM/M	Cont. Max Run
2700K	9W/1m	29.41mm	820	10M
3000K	9W/1m	29.41mm	900	10M
4000K	9W/1m	29.41mm	980	10M
6500K	9W/1m	29.41mm	1000	10M

COLOUR TEMPERATURE

DETAILED INFORMATION
